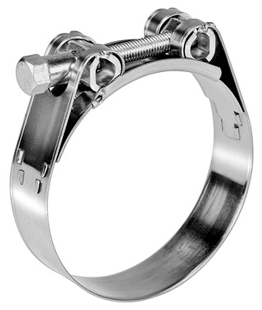

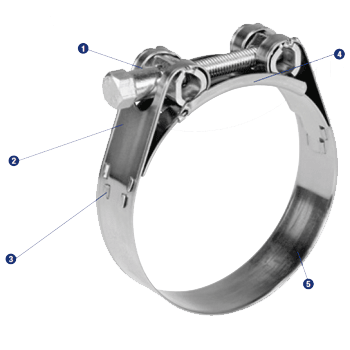

Heavy Duty Clamps
to DIN 3017

Extremely high band tension

RLoc Rollerball Ties
  • Description
  • Features
  • Versions
  • Sizes
  • Downloads


Torro Overview

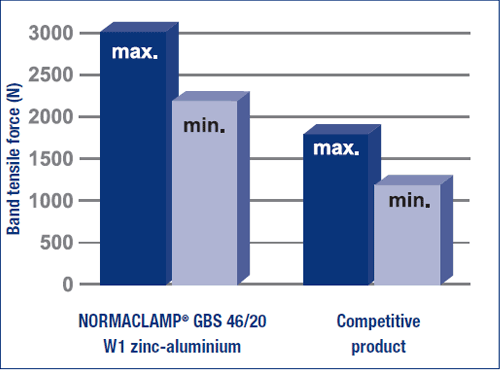

Tensile Forces


GBSM Materials

Material

Available in Zinc Plated & Stainless steel

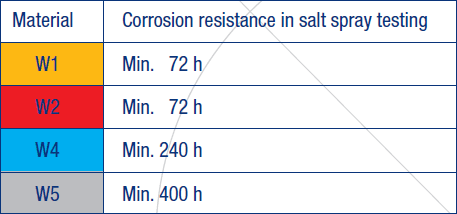

Corrosion Resistance

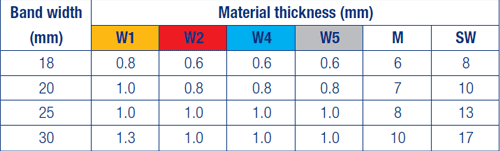

Material Thickness

Clic Logo

Quick Release

The hinged bolt can be quickly released and enables the fast and easy assembly or disassembly of the clamp.


ClicTop Logo

Multi-Part version

Multiple GBS Clamps can be added together to form a clamp for bigger clamping ranges.



Range of Sizes

B

band width

s

material thickness

M

bolt diameter

A/F

screw head A/F

All dimensions stated in mm.

GBS 1-Part

Standard SizesBsMA/FNon-Standard Sizes
GBSM 17- 19/18*180.668GBSM 43- 47/18
GBSM 19- 21/18 *GBSM 47- 51/18
GBSM 21- 23/18 *GBSM 51- 55/18
GBSM 23- 25/18 *GBSM 55- 59/18
GBSM 25- 27/18GBSM 59- 63/18
GBSM 27- 29/18GBSM 63- 68/18
GBSM 29- 31/18GBSM 68- 73/18
GBSM 31- 34/18GBSM 73- 78/18
GBSM 34- 37/18
GBSM 37- 40/18
GBSM 40- 43/18
GBSM 43- 47/20200.8710GBSM 68- 73/20
GBSM 47- 51/20GBSM 73- 79/20
GBSM 51- 55/20GBSM 79- 85/20
GBSM 56- 59/20GBSM 85- 91/20
GBSM 59- 63/20
GBSM 63- 68/20
GBSM 68- 73/25251813GBSM130-140/25
GBSM 73- 79/25GBSM140-150/25
GBSM 79- 85/25GBSM150-162/25
GBSM 85- 91/25GBSM162-174/25
GBSM 91- 97/25GBSM174-187/25
GBSM 97-104/25
GBSM104-112/25
GBSM112-121/25
GBSM121-130/25
GBSM130-140/303011017GBSM252-265/30
GBSM140-150/30GBSM265-278/30
GBSM150-162/30GBSM278-291/30
GBSM162-174/30GBSM291-304/30
GBSM174-187/30GBSM304-317/30
GBSM187-200/30GBSM317-330/30
GBSM200-213/30
GBSM213-226/30
GBSM226-239/30
GBSM239-252/30


GBS 2-Part

Order CodeBsMA/F
GBSM 59- 67/18180.668
GBSM 67- 75/18
GBSM 67- 75/20200.8710
GBSM 75- 83/20
GBSM 83- 91/20
GBSM 88-100/25251.0813
GBSM100-116/25
GBSM116-136/25
GBSM136-156/25
GBSM156-180/25
GBSM125-145/30301.01017
GBSM145-168/30
GBSM168-193/30
GBSM193-220/30
GBSM220-245/30
GBSM245-270/30
GBSM270-295/30
GBSM295-320/30
GBSM320-345/30
